Penta Wave

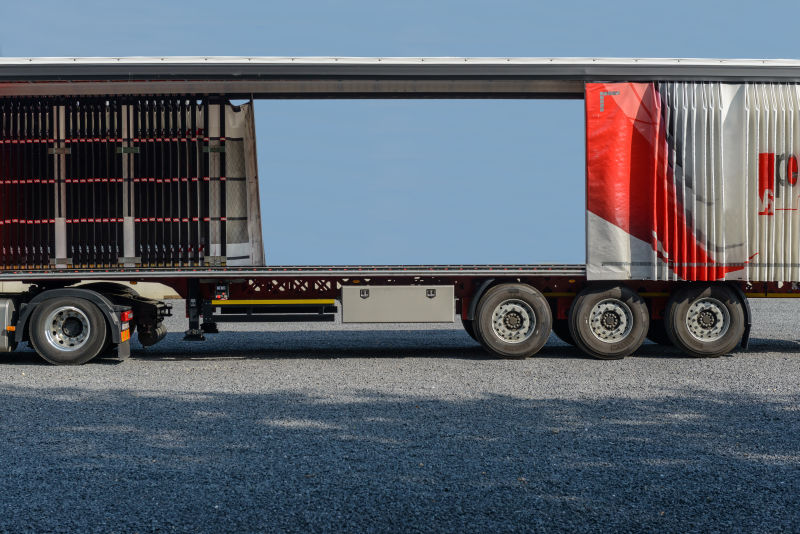

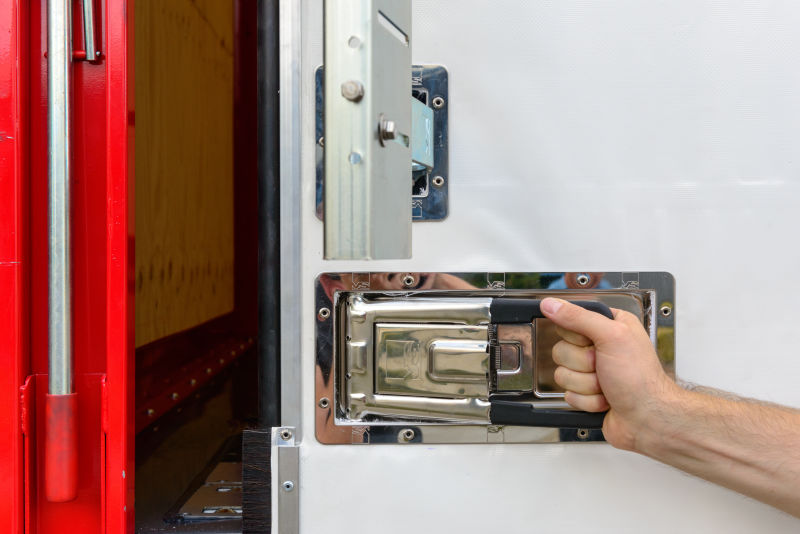

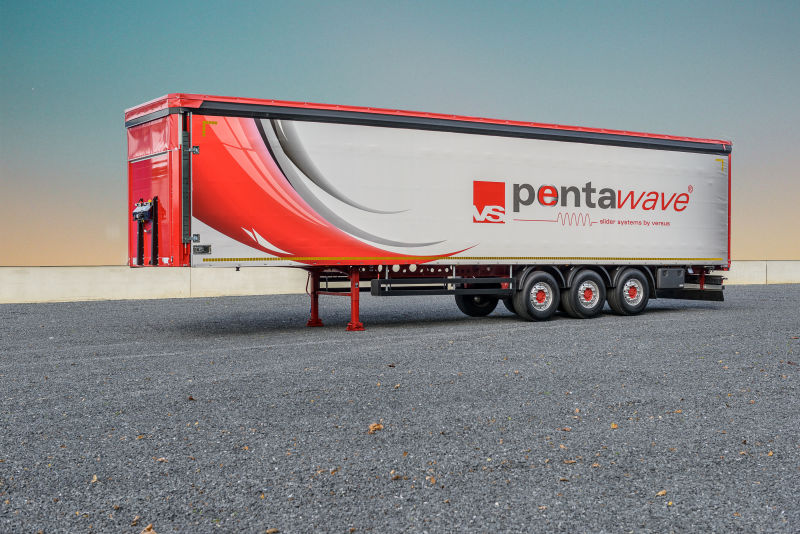

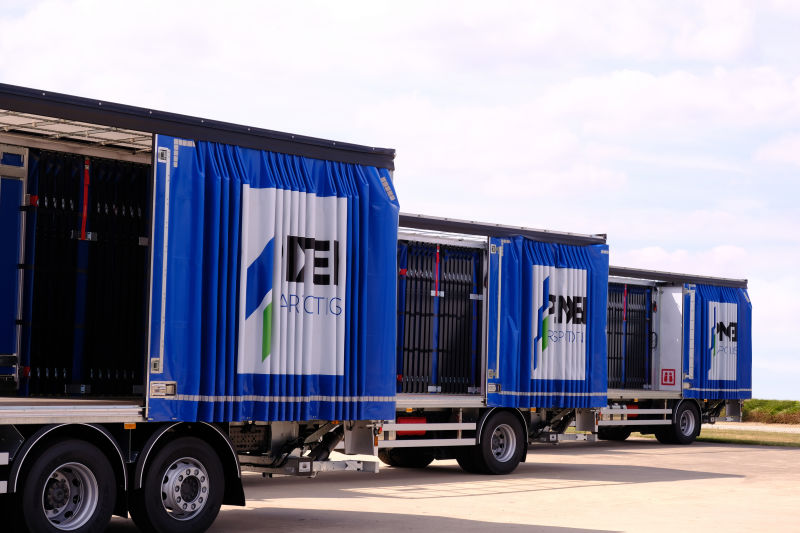

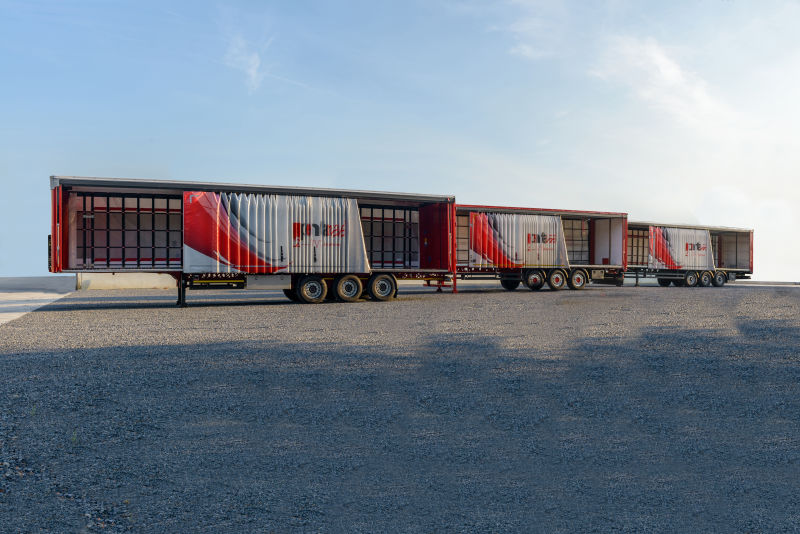

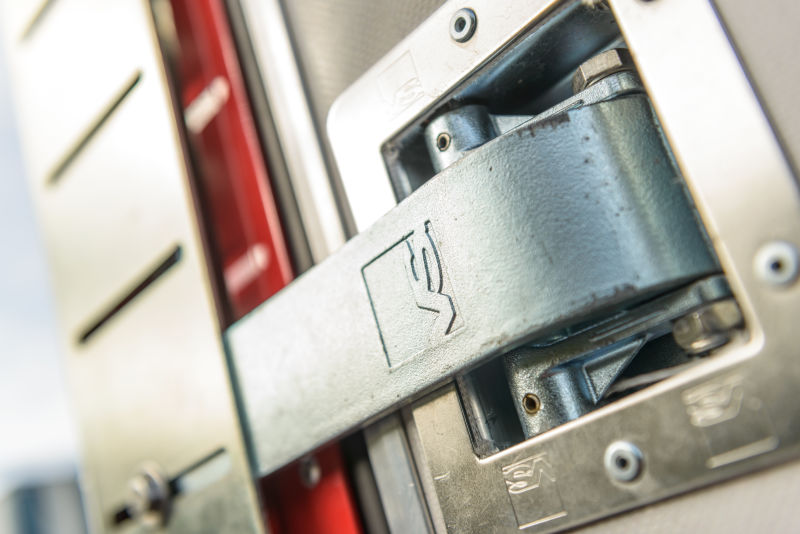

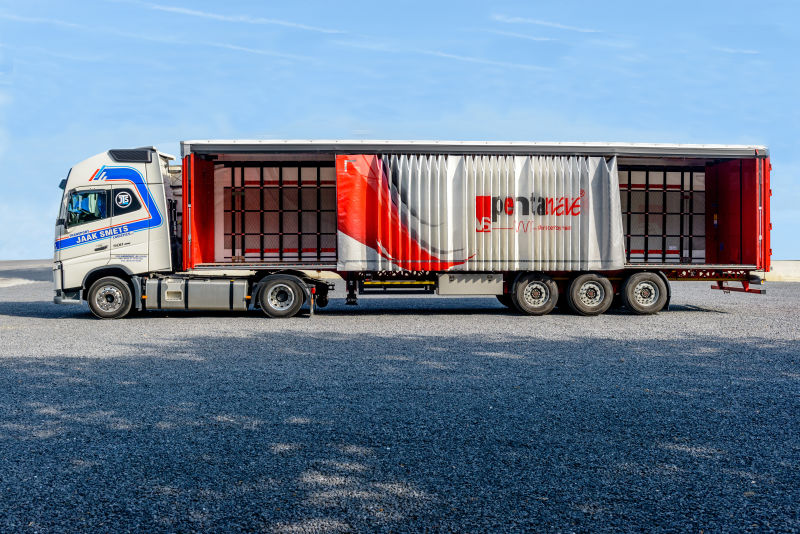

Penta Wave is a slider system with reinforced profiles, suitable for trailers up to 13,6 m. The Penta Wave has a Quick Lock door in front and a traditional standard door behind, with a stretch tube and rattle. Therefore the cargo space can be opened and closed up again within seconds, from both sides.

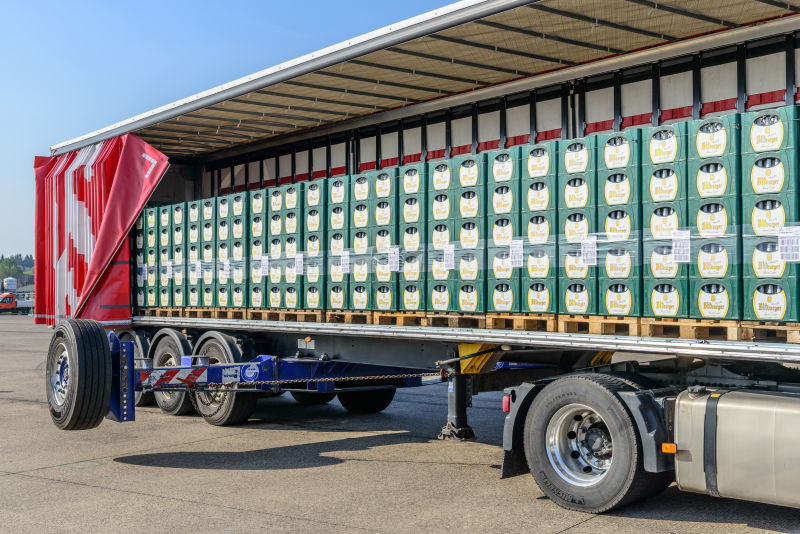

The system is versatile adaptable to a number of logistical challenges, such as palletized transport or the transport of beverages. The Versus Penta Wave meets the EN 12642 XL standard for loading safety.

Options:
• 2 Quick Lock doors on each side, for an even faster service.
• Standard door in front and behind in combination with stretch tubes / rattle in front and behind.
• or the Penta Wave Light (the latter without certificate of loading safety).

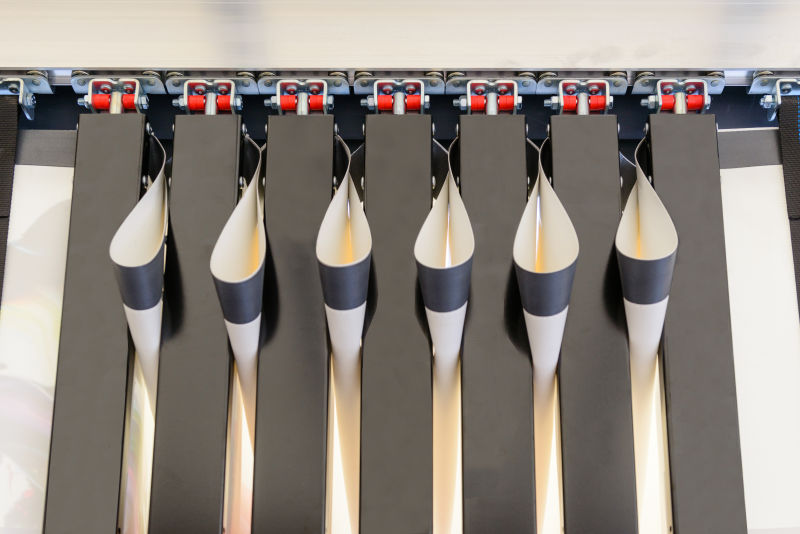

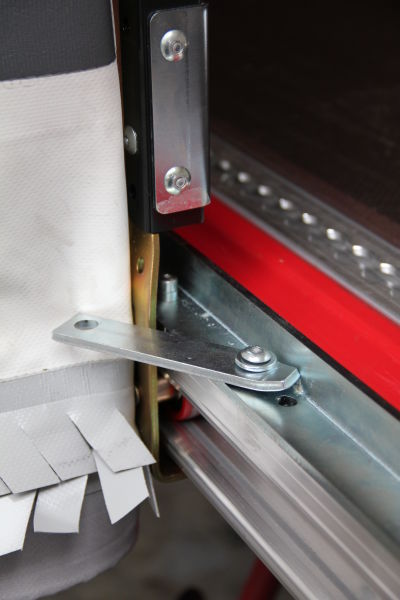

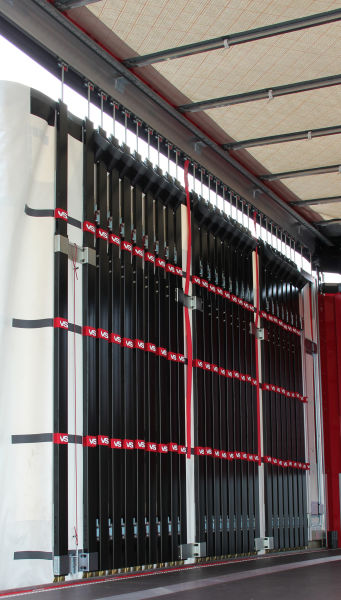

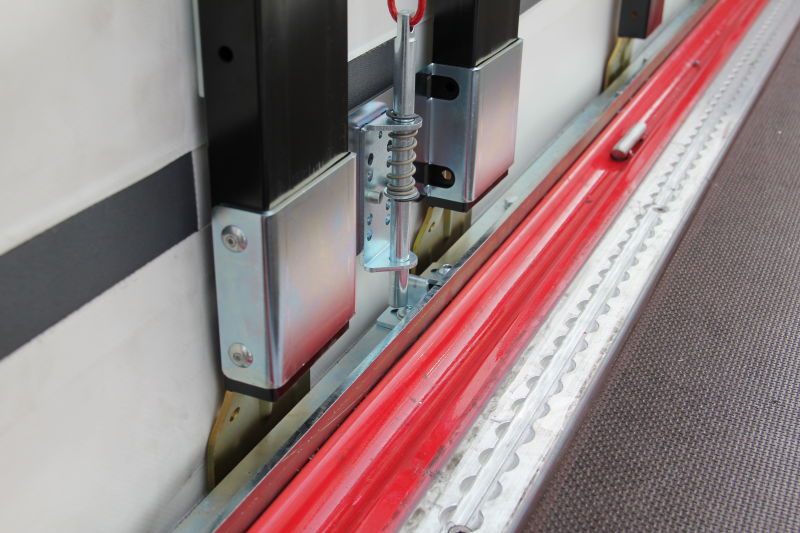

The rollers of a Penta slider system are sliding at the top and bottom through an aluminium rail. At the top the Penta Wave uses the Penta duo rail, the Penta Duo is a self-supporting aluminium profile that can be built with a fixed roof or with a sliding roof. At the bottom the system has a special profile: the Penta Wave rail. This rail has a height of 70 mm and is screwed against a side profile of the chassis.

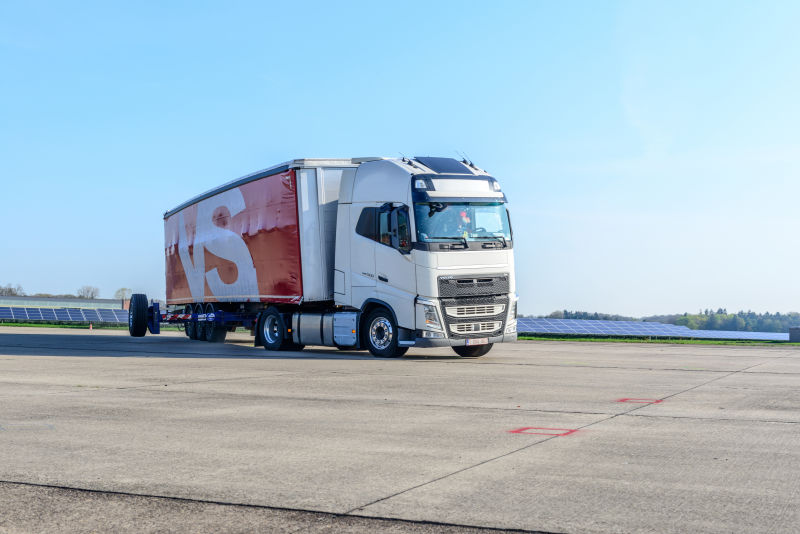

As a logistic company you want an efficient and durable system. That is why we tested the Penta Wave on the DAF Trucks test circuit in Eindhoven, we simulated 1.7 million km over different road circumstances, inclusive bad roads. With success!
